Use FRP, Beat Corrosion
Reliable FRP Structural Profile for Demanding Applications
At IndiGrate Composites, we manufacture FRP Structural Profiles that deliver exceptional strength, corrosion resistance, and lightweight performance for a wide range of industries. Produced with advanced pultrusion technology and premium resin systems, our profiles ensure structural integrity, withstand harsh environments, and require minimal maintenance, making them ideal for industrial, marine, electrical, and structural applications.
What are FRP Structural Profile?
FRP Structural Profiles are high-strength, lightweight structural components manufactured by pulling fiberglass reinforcements through a resin bath and heated die, forming continuous profiles with precise shapes. These profiles deliver excellent corrosion resistance, dimensional stability, and mechanical performance, making them ideal for industrial, marine, electrical, and structural applications. Their non-conductive and low-maintenance properties make them a preferred alternative to steel, aluminum, and wood in harsh environments.
Our Commitment to Excellence
At IndiGrate Composites, we are dedicated to delivering FRP Structural Profiles that combine innovation, strength, and reliability. Every profile is manufactured using advanced pultrusion technology, premium-grade resins, and rigorous quality controls to ensure consistent performance in the most demanding environments.
We go beyond just supplying products — we provide engineered solutions that enhance safety, extend service life, and reduce long-term maintenance costs.
Why Choose Our FRP Structural Profile?
| SR. NO. | Structural Profile Description | Profile Details | ||
|---|---|---|---|---|
| Width (mm) | Height (mm) | Thickness (mm) | ||
| 1 | Notch Bar / Groove Bar | – | – | – |
| 2 | HAT 80 (Midrail) | 80 | 32 | 3 |
| 3 | Kick Plate | 101 | 15 | 3 |
| 4 | Omega | 65 | 50 | 4 |

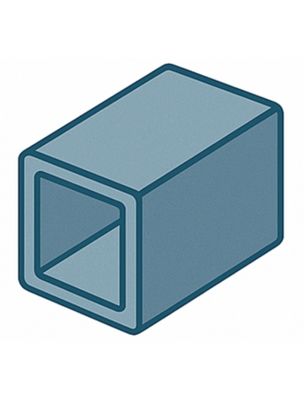

| 5 | Square Tube | 40 | 40 | 3 |
| 50 | 50 | 4 | ||
| 50 | 50 | 5 | ||
| 63.5 | 63.5 | 5 | ||
| 76.2 | 76.2 | 6 | ||
| 76.2 | 76.2 | 5 | ||
| 88.9 | 88.9 | 3.175 | ||
| 88.9 | 88.9 | 5 | ||
| 6 | Square Rung | 25 | 25 | 3 |

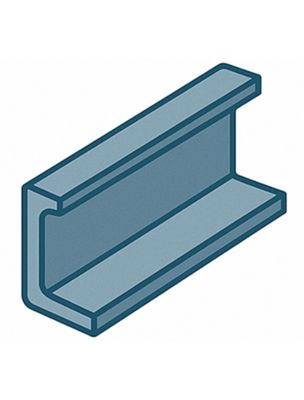

| 7 | C-Channel | 50 | 30 | 3 |
| 50 | 50 | 3 | ||
| 50 | 50 | 4 | ||
| 58 | 12 | 3 | ||
| 75 | 30 | 3 | ||
| 75 | 30 | 4 | ||
| 75 | 30 | 5 | ||
| 100 | 30 | 4 | ||
| 100 | 30 | 5 | ||
| 100 | 30 | 6 | ||
| 100 | 20 | 3 | ||
| 100 | 50 | 3 | ||
| 100 | 50 | 4 | ||
| 108 | 15 | 3 | ||
| 150 | 50 | 3 | ||
| 150 | 50 | 6 | ||
| 150 | 50 | 4 | ||

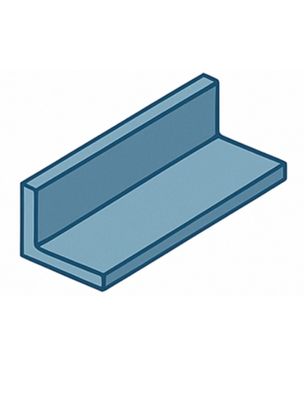

| 8 | Equal Angle | 29 | 29 | 3 |
| 50 | 50 | 6 | ||

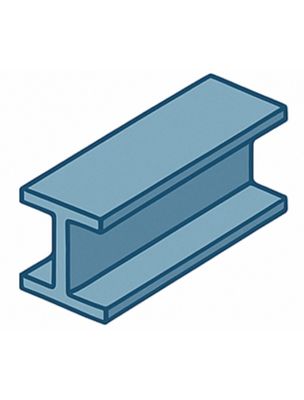

| 9 | I Beam | 152.4 | 76.2 | 6.35 |
| 152.4 | 76.2 | 8 | ||
| 38 | 15 | 4 | ||
| 10 | Fluted Pipe / Serrated Pipe | 32 | – | 5 |

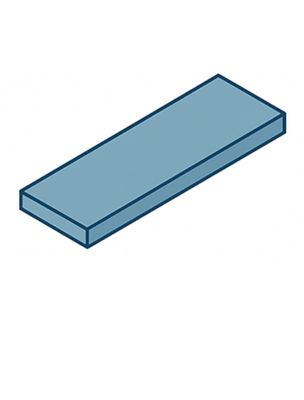

| 11 | Flat Bar | 100 | – | 4 |
| 12 | Carrier Profile | 64 | 64 | 4 |

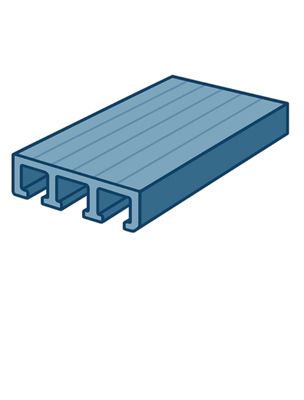

| 13 | Deck Panel | 610 | 29 | 4.5 |
| Resin Type | Resin Base | Key Properties | Description |
|---|---|---|---|
| IGCPL – O | Orthophthalic Polyester Resin | UV Resistant | General-purpose resin with UV resistivity. |
| IGCPL – OFR | Orthophthalic Polyester Resin | UV + Fire Retardant | General-purpose resin with UV resistivity and fire retardance (UL–94). |
| IGCPL – I | Isophthalic Polyester Resin | UV Resistant | Industrial-grade resin with enhanced corrosion resistance. |
| IGCPL – IFR | Isophthalic Polyester Resin | UV + Fire Retardant | Industrial-grade resin with corrosion resistance and fire retardance (UL–94, ASTM E84). |
| IGCPL – V | Vinyl Ester Resin | UV + Fire Retardant | High corrosion resistance with fire retardance (UL–94, ASTM E84). |
| IGCPL – VS | Super Vinyl Ester Resin | UV + Fire Retardant | Highest corrosion resistance with fire retardance (UL–94, ASTM E84). |
Frequently Asked Questions
FRP Structural Profiles are extremely durable, resisting impact, fatigue, and wear over time. Their non-corrosive nature ensures they maintain strength and appearance even after prolonged exposure to moisture, chemicals, and UV rays, making them ideal for demanding environments.
Yes. Made from glass fibers and resins, they are produced with minimal waste and can be fully recycled at the end of their service life—supporting sustainable manufacturing and construction practices.
Maintenance is simple. Cleaning with water and mild detergent is often enough. For harsh environments, periodic inspections help ensure optimal performance and longevity.
While the initial cost can be higher than traditional materials, long-term savings are significant thanks to low maintenance, corrosion resistance, and extended service life—resulting in a lower total cost of ownership.
Yes. The pultrusion process allows for custom shapes, sizes, and lengths, enabling solutions tailored to specific structural, industrial, or design requirements.
